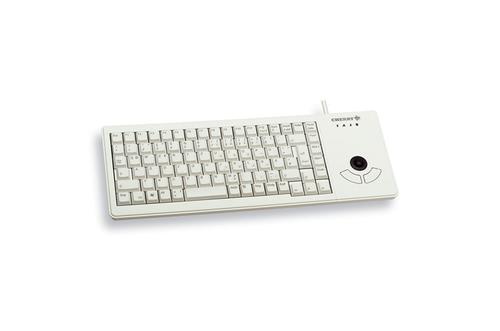

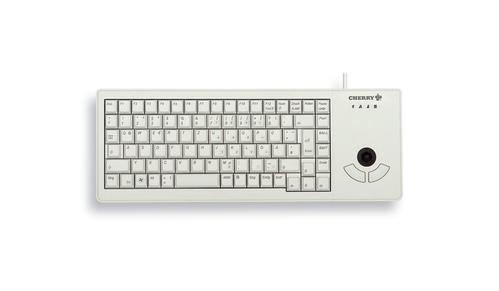

XS Trackball Keyboard

Small, flat and extremely robust

The "XS Trackball Keyboard" (G84-5400) combines comfortable mouse control with compact dimensions. Via the optical trackball with two mouse keys, the cursor can be controlled easily and precisely.

Key benefits

Optical trackball with two mouse buttons for easy control of the cursor
High degree of reliability and precise keystroke feel thanks to individual keys with Gold Crosspoint contacts (Cherry ML technology)
Ideal for continuous usage due to the long operating life in excess of 20 million key confirmations per individual key
Compact dimensions and very low overall build height, ideal for restricted spaces and for 19" applications
Standardised measurements and installation dimensions of the complete XS product family - the keyboard can be adapted to every application
Lightweight - for applications where every gram counts
Plug & Play - can be used with the operating system's standard drivers
Supports Code Set 3 and UnifiedPOS
Fastening option for permanent installation
Detachable pluggable feet for individually adjusting the tilt of the keyboard
Freely programmable keys for even more time-saving operation

Technical Data

Weight (product):
approx. 540 g

Total weight (with packaging):
approx. 670 g

Cable Length:
•approx. 2.50 m

Storage Temperature:
•-20°C to 60°C

Operating Temperature:
•0°C to 50°C

Current Consumption:
•typ. 35 mA

Warranty:
•2 years

Product approvals:
cURus
c-tick
VCCI
CE
FCC
VDE
BSMI

Delivery Volume:
•1 XS Trackball Keyboard
•Operating instructions in hard copy
•2 Pluggable feet

Dimensions (product):
•approx. 374 x 139 x 20 mm

Packaging dimensions:
•approx. 393 x 196 x 33 mm

Reliability:
•Trackball keys: > 3 mill. operations
•MTBF > 4.9 mill. hours

Keyboard:
•Key technology: ML
•Service life, standard key: > 20 million key operations
•Operation characteristics: Linear
•Inscription technology: Laser
•Inscription layout: Normal

Track ball:
•Scanning: Optical
•Resolution: 400 dpi
•Number of Keys: 2

Models:

Product name:	Order number:	Layout (country or language)	Housing colour:	Key colour:	Interface:	System requirements:	Number of Keys:	Track ball Connection:
XS Trackball Keyboard	G84-5400LPMBE-0	Belgium	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMBE-2	Belgium	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMCH-0	Switzerland	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMCH-2	Switzerland	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMDE-0	Germany	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMDE-2	Germany	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMDK-0	Denmark	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMDK-2	Denmark	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMES-0	Spain	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMES-2	Spain	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMEU-0	US English with EURO symbol	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	88	PS/2
XS Trackball Keyboard	G84-5400LPMEU-2	US English with EURO symbol	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	88	PS/2
XS Trackball Keyboard	G84-5400LPMFR-0	France	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMFR-2	France	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMGB-0	UK	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMGB-2	UK	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMHU-0	Hungary	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMHU-2	Hungary	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMIT-0	Italy	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMIT-2	Italy	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMNO-0	Norway	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMNO-2	Norway	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMPL-0	Poland	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMPL-2	Poland	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMPO-0	Portugal	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMPO-2	Portugal	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMSF-0	Sweden / Finland	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMSF-2	Sweden / Finland	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMSK-0	Slovakia	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMSK-2	Slovakia	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMTQ-0	Turkey	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMTQ-2	Turkey	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMTS-0	Czech Republic	light grey	light grey	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LPMTS-2	Czech Republic	black	black	PS/2 (keyboard), PS/2 (mouse, trackball, touchpad)	PS/2 connections for keyboard and mouse	89	PS/2
XS Trackball Keyboard	G84-5400LUMBE-0	Belgium	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMBE-2	Belgium	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMCH-0	Switzerland	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMCH-2	Switzerland	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMDE-0	Germany	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMDE-2	Germany	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMDK-0	Denmark	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMDK-2	Denmark	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMES-0	Spain	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMES-2	Spain	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMEU-0	US English with EURO symbol	light grey	light grey	USB	USB connection	88	USB
XS Trackball Keyboard	G84-5400LUMEU-2	US English with EURO symbol	black	black	USB	USB connection	88	USB
XS Trackball Keyboard	G84-5400LUMFR-0	France	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMFR-2	France	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMGB-0	UK	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMGB-2	UK	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMHU-0	Hungary	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMHU-2	Hungary	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMIT-0	Italy	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMIT-2	Italy	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMNO-0	Norway	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMNO-2	Norway	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMPL-0	Poland	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMPL-2	Poland	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMPO-0	Portugal	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMPO-2	Portugal	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMSF-0	Sweden / Finland	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMSF-2	Sweden / Finland	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMSK-0	Slovakia	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMSK-2	Slovakia	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMTQ-0	Turkey	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMTQ-2	Turkey	black	black	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMTS-0	Czech Republic	light grey	light grey	USB	USB connection	89	USB
XS Trackball Keyboard	G84-5400LUMTS-2	Czech Republic	black	black	USB	USB connection	89	USB

Näppäimistö
Suositeltu käyttö	Universaali
Laitteen käyttöliittymä	USB
Näppäimistön asettelu	QWERTY
Näppäimistön kieli	Englanti (US)
Osoitinlaite	Kosketuslevy + hiiripainikkeet
Näppäimistön malli	Täysikokoinen (100 %)
Numeronäppäimistö	Ei
Näppäimistön näppäinten lukumäärä	88
Näppäimistönäppäinten käyttöikä	20 miljoonaa merkkiä
Windows-näppäimet	Kyllä
Yhteysteknologia	Langallinen
USB-keskitin	Ei
Tarkoitus	Universaali
Sormenjälkilukija	Ei
Sertifiointi	cURus, c-tick, VCCI, CE, FCC, VDE, BSMI
Suunnittelu
Taustavalo	Ei
Näppäimistön tyyli	Suora
Rannetuki	Ei
Tuotteen väri	Harmaa
Pinnan väri	Yksivärinen
Ominaisuudet
Johdon pituus	2,5 m
Plug & Play -yhteensopiva	Kyllä
Virranhallinta
Virtalähteen malli	USB
Virrankulutus	35 mA
Hiiri
Sisältää hiiren	Ei
Liikkeentunnistusteknologia	Optinen
Liikeen erottelutarkkuus	500 DPI
Painikkeiden määrä	2
Ympäristöolosuhteet
Käyttölämpötila (T-T)	0 - 50 °C
Varastointilämpötila	-20 - 60 °C
Paino ja mitat
Näppäimistön mitat (LxSxK)	374 x 139 x 20 mm
Näppäimistön paino	540 g
Pakkaustiedot
Käyttöopas	Kyllä
Pakkauksen leveys	393 mm
Pakkauksen syvyys	196 mm
Pakkauksen korkeus	33 mm
Pakkauksen paino	670 g
Logistiikkatiedot
Harmonoidun järjestelmän nimikkeistökoodi (HS)	84716060
Määrä per tuotepakkaus	21 kpl
Pahvilaatikoiden lukumäärä per lava	12 kpl
